800m Depth Diamond Core Drilling Machine For Mineral Borehole

Name: 800m Depth Diamond Core Drilling Machine For Mineral Borehole
Brand: SHITAN
Price: 1 USD

Brand Name : SHITAN

Model Number : ST-800

Certification : ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 2000 sets per year

Delivery Time : 7-10 days

Packaging Details : Standard Export Package

Condition : New

Type : Rotary Drilling Rig

Power Type : Diesel

Usage : Borehole Drilling

Voltage : Diesel Engine Driven

Power(W) : 140kw

Dimension(L*W*H) : 6100*2200*2900mm

Weight : 13t

Drilling depth : 800m

Warranty : 1 Year

Contact Now

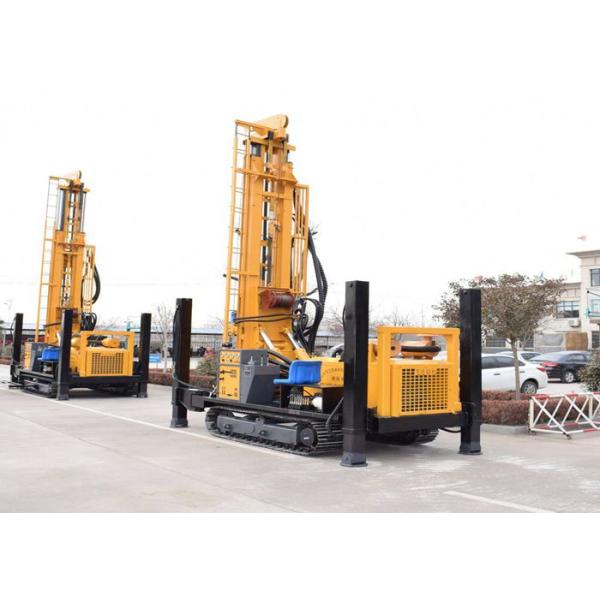

800m Depth Core Drilling Rig Available for Mineral Borehole Drilling

Product Advantages:

ST series multi-function hydraulic well drilling truck parallel gear box design, oil pump monomer separation, reasonable power supply and distribution, with power head device, gearbox casting, dual motor power. At the same time, there are professional excavator chassis, strong and durable, high bearing capacity, small chain plate width, and small damage to the hard surface.

Product Parameter:

SPECIFICATIONS FOR ST-800 CORE DRILLING RIG
Rig lifting force(T)	30	Equipped capacitor(Kw)	140
Dimensions(mm)	610022002900	Drill pipe diameter(mm)	Φ102 Φ108 Φ114
The hole diameter(mm)	140-400	Drill pipe length(m)	1.5 2.0 3.0 6.0
Drilling depth(m)	800	Swing speed(rpm)	55-120
One-time advance length(m)	6.6	Swing torque(N.m)	8850-13150
Walking speed(km/h)	2.5	Using air pressure(Mpa)	1.7-3.5
Climbing angles(Max.)	30	Air consumption(m³/min)	17-42

800m Depth Diamond Core Drilling Machine For Mineral Borehole
